Comfort Systems

comfort engineered

Special valves for comfort hydraulics

RAPA Automotive's special hydraulic valves include proportional and switching valves that are configured for special applications.

Such special solutions are used, for example, for

  • throttling flow rates (e.g. reducing cylinder speeds)
  • the switching of consumers
  • or for regulating pressures (e.g. in hydraulically controlled chassis).

Depending on the application, different nominal valve sizes can be realized. This depends on the valve design in spool or seat technology.

In the area of hydraulic applications, the special valves and other hydraulic functional elements can be integrated into compact blocks from RAPA Automotive. This reduces the assembly effort and the space required in the application. The blocks are developed specifically according to customer requirements.

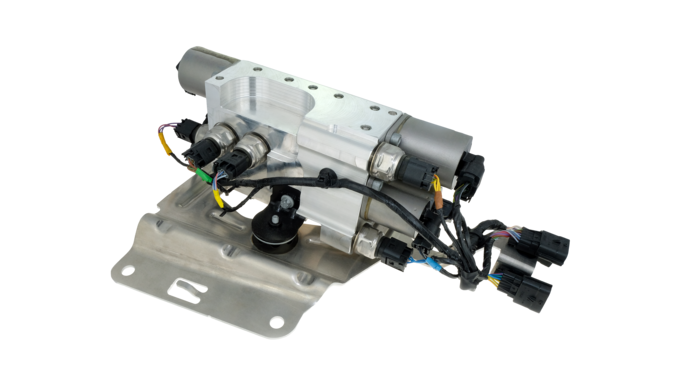

Produktfoto eines hydraulischen Ventilblocks von RAPA Automotive

Key features

Facts, figures and data

TypeProportional pressure control valve (spool design NO)2/2-way seat valve with integrated proportional throttle function (NO)2/2-way switching valve with non-return function in energized state (NO)
Operating mediumHydraulic oilHydraulic oilHydraulic oil
Ambient temperature-40 °C to +85 °C-40 °C to +85 °C-40 °C to +85 °C
Operating pressureup to 200 barup to 150 barup to 150 bar
Flow rate2 - 10 l/minup to 2 l/minup to 40 l/min
Nominal voltage12 V12 V12 V
Electrical connectionIntegrated plug connectionIntegrated plug connectionIntegrated plug connection
Protection classIP6K9IP6K9IP6K9
Installation positionDepending on the type of application, any orientationDepending on the type of application,
Any orientation		Depending on the type of application,
Any orientation



All data at a glance

You can download our product data sheet here

Know-how

Benefit from our many years of development and market experience in the field of hydraulic valve solutions.

For more than three decades, RAPA Automotive has been developing and manufacturing individual valves, hydraulic valve blocks and special solutions for a wide range of applications.

Possible areas of application

Application for any hydraulic function in the automotive sector
