Hydraulic switching valve

The NV switching valves from RAPA Automotive are based on a flexible modular structure. Depending on the version, the valves are suitable for indoor or outdoor use. Coils with nominal voltages of 12 V or 24 V are available for various applications.

The electromagnetic, direct operated ball seat valves can be configured as 3/2 or 2/2-way switching valves. Each individual configuration is designed in a standardized cartridge design and thus compressed into the smallest possible space.

The NV switching valves from RAPA Automotive impress with

  • High tightness → virtually leak-free
  • Pressure levels up to 200 bar
  • Flexible modular system with nominal valve widths from 1.0 - 2.5 mm
  • Wide range of functions with a uniform design in a compact construction

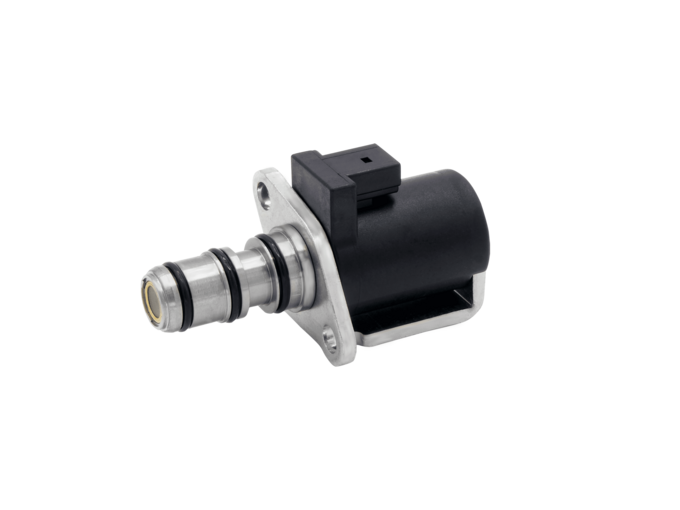

Produktfoto eines hydraulischen Schaltventils von RAPA Automotive

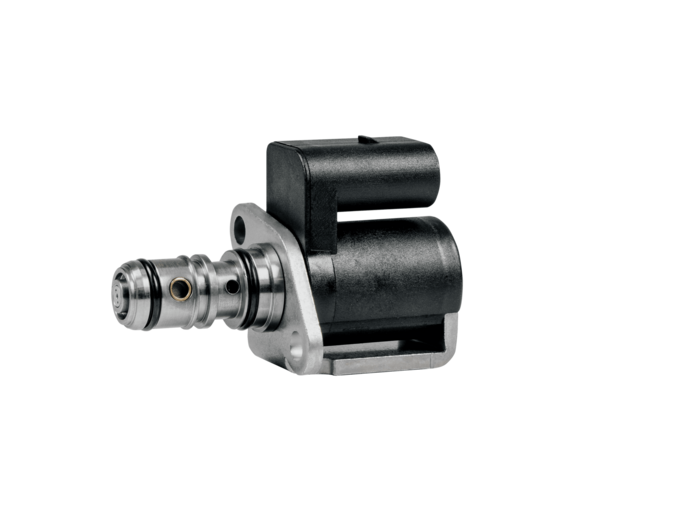

Produktfoto eines hydraulischen Schaltventils von RAPA Automotive

Key features

Customized solution

We adjust these parameters according to your wishes

  • Basic / normally closed position (NO / NC)
  • Operating principle (3/2 or 2/2-way valve)
  • Nominal size (1.0 mm - 2.5 mm depending on application)
  • Plug (integrated plug-in connection AMP or FEP)
  • Mounting

All data at a glance

You can download our product data sheet here

Know-how

Benefit from our many years of development and market experience in the field of hydraulic valve solutions.

For more than three decades, RAPA Automotive has been developing and manufacturing individual valves, hydraulic valve blocks and special solutions for a wide range of applications.

Facts, figures and data

Type3/2-way switching valve, 2/2-way switching valve
(NO / NC)		3/2-way switching valve, 2/2-way switching valve
(NO / NC)
Operating mediumHydraulic oilHydraulic oil
Ambient temperature range-40 °C to +90 °C-40 °C to +90 °C
Operating pressureup to 200 barup to 200 bar
Flow rateup to 2 l/minup to 2 l/min
Nominal voltage12 V12 V / 24 V
Operating voltage9 - 16 V9 - 16 V / 19 - 27 V
Electrical connectionIntegrated plug connection (AMP)Integrated plug-in connection (FEP)
Protection classIP40IP6K9
Installation positionDepending on the type of application,
Any orientation		Depending on the type of application,
Any orientation

Possible areas of application

Application for any hydraulic function in the automotive sector
