Many years of expertise & market experience

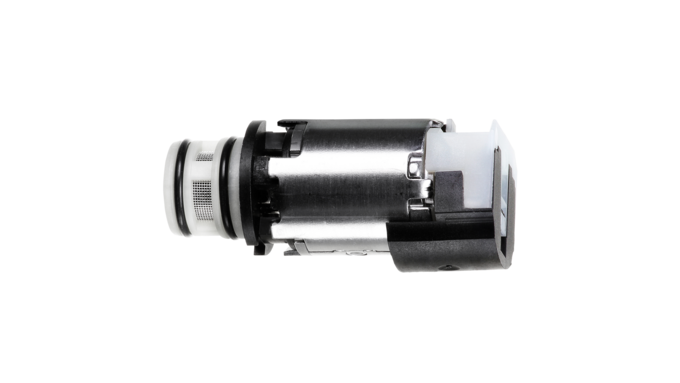

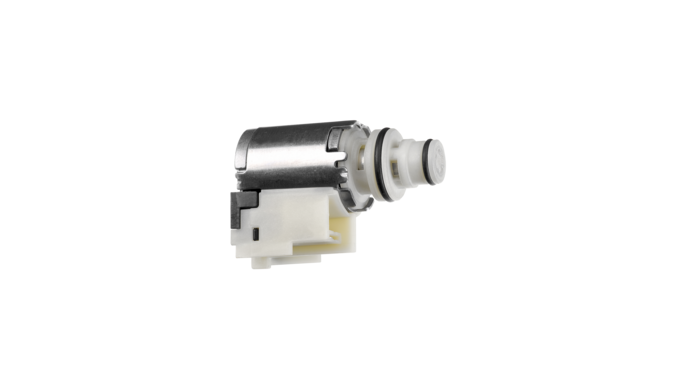

Based on the hydraulic expertise that has been built up since the mid-1980s with the NV gearshift valve kit and the market experience with the first-generation gearshift valve, RAPA Automotive has been producing the enhanced gearshift valve in series since 2013.
The experience and findings from these projects form the basis for RAPA Automotive's expertise in the field of electrohydraulics and the further development of smart product solutions.
Facts, figures and data | |
|---|---|
| Type | 3/2-way switching valve (pressure connection NC) |
| Operating medium | Gear oil |
| Ambient temperature range | -30 °C to +150 °C |
| Operating pressure | max. 6 bar |
| Flow rate | depending on flow direction and temperature max. 3.4 l/min |
| Leakage | depending on sealing direction up to min. 20 ml/min |
| Nominal voltage | 12 V |
| Operating voltage | 9 ... 16 V |
| Electrical connection | plug |
| Installation position | Any orientation, inside the gearbox |
