Damper switching valve

Valve for adaptive chassis

The damper switching valve from RAPA Automotive is installed internally in dampers for adaptive suspensions, for example. Such a valve allows the driver to choose between two driving modes that change the driving behavior. When switching from "Normal" or "Comfort" to "Sport", the flow path in the switching valve is closed, the damping force is increased and a firmer suspension set-up is noticeable.

Depending on the technical requirements of our customers, we offer the development of specific housing variants.

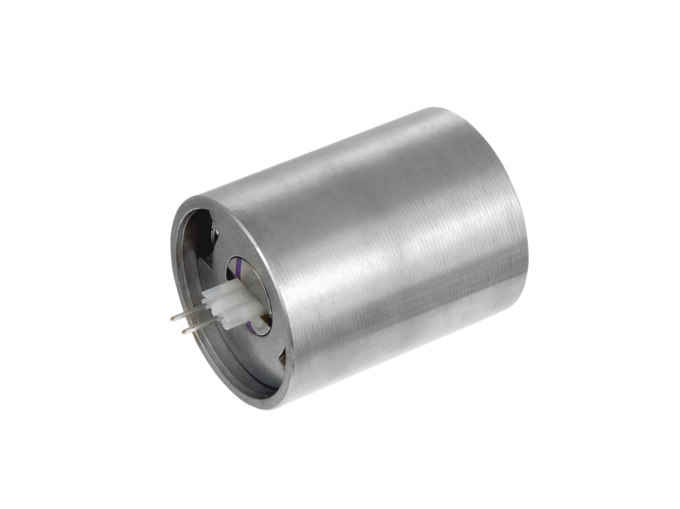

Produktfoto eines Dämpferschaltventils von RAPA Automotive

Key features

Consistency in terms of costs and quality

RAPA Automotive developed the first concepts for internal damper shift valves back in the early 2010s. We develop and produce these valves for damper manufacturers, i.e. Tier 1 system suppliers.

Since the start of series production in 2017, the damper switching valve has been produced by RAPA Automotive almost unchanged due to its reliably high quality. At the same time, it has been possible to optimize the cost structure.

By designing the damper valve as a 2/2-way switching valve, two different driving modes are made possible for the end customer. This makes it possible to offer an entry-level technology for electrically adjustable dampers that is more cost-effective than dampers with more complex proportional valves. Accordingly, an adaptive damper can already be offered in more price-sensitive vehicle segments such as the compact class.

All data at a glance

You can download our product data sheet here

Damper switching valve (pdf)

Facts, figures and data
Valve type	2/2 NO switching valve
Operating temperature range	-40 °C to +120 °C
Flow direction	Flow through both sides
Relative duty cycle	100 % duty cycle with push / hold
Pressure drop (open)	3.5 bar @ 30 l/min
Installation position	Inside a damper tube
Mounting	Welded connection (to piston rod + piston)
